Works 24/7! If your business or factory needs a high-production machine, 15 heads cover that demand perfectly—ideal for embroidery service companies (contract work) with large volumes and tight deadlines. Embroider fabric cuts, garments, and patches (badges or emblems) with high output in short times.
Manufactured under CNC standards and processes, ensuring minimal wear over the years.
Flat embroidery machine for unassembled garments (fabric or leather cuts), large canvases, as well as assembled garments and caps (properly placed on the hoop or frame). Achieve your production in half the time with an industrial servo motor, bridge-type structure, and best of all:
It’s a FlexColor! — you already know the name.
Includes:
- âś… Shipping, Delivery, Installation, and Training
- âś… Complete Hoop Set with all required sizes
- âś… Pantograph or frame for large-area embroidery
- âś… Bobbin winder to create your own bobbin thread
- âś… Basic Tool Kit and Spare Parts
What can you embroider?
- GENERAL FABRIC CUTS
- GENERAL LEATHER CUTS
- SHIRTS
- JACKETS
- PANTS
- CLOTHING IN GENERAL
- BADGES OR PATCHES
- TOWELS
- ASSEMBLED CAPS (CERTAIN AREAS)
- DISASSEMBLED CAPS (FLAT)
- NAPKINS
- SPECIAL GARMENTS
- 3D EMBROIDERY
- SINGLE SEQUIN (Opt.)
- DOUBLE SEQUIN (Opt.)
- OVERLAPPED SEQUIN (Opt.)
- INTERLACED SEQUIN (Opt.)
- SINGLE-LAYER APPLIQUE
- MULTI-LAYER APPLIQUE
- CROSS STITCH
- RUSTIC
- FILL OR DENSE
- FLAT OR FINE
- DENIM (JEANS)
- COTTON
- POLYESTER
- PIQUET
- GABARDINE
- SILK
- SYNTHETIC FIBERS
- NATURAL FIBERS
- OTHERS
IMPORTANT: There are embroidery machines for different applications; not all can do the same work or achieve the same finish. It depends on the embroidery technique, design, model chosen, and installed options. Consult your FlexColor advisor.
Technical Specifications

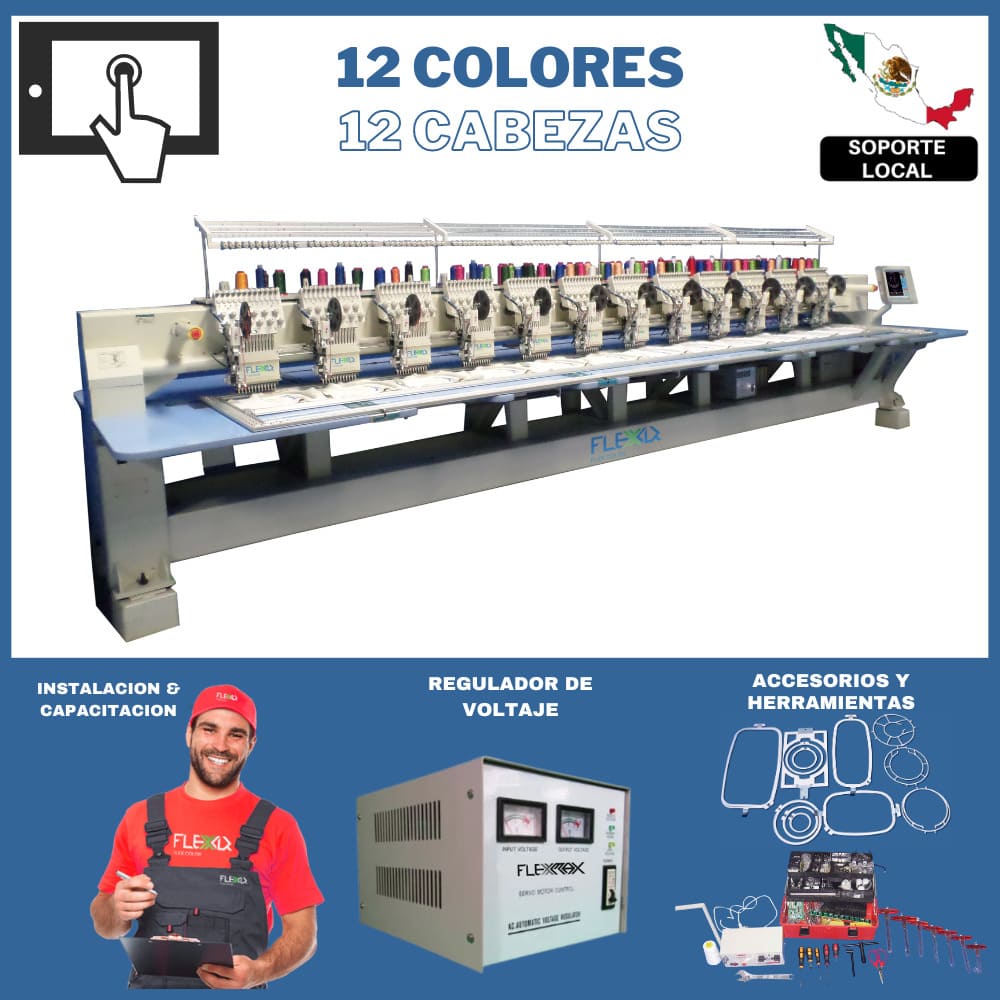

| INDUSTRIAL FLAT EMBROIDERY MACHINE - FASHION1212 | |
|---|---|
| Embroidery Area per Head | 68 x 40 cm (achieved with the pantograph or full-area hoop) |
| Speed | Up to 1,200 rpm |
| Control Panel | Dahao A58 LCD Color "Touch Screen" |
| Supported Formats | EMB, DST, DSB, DSZ among other common formats. |
| Dimensions | Width: 6.40m (252"). Depth: 1.60m (63") with table installed. Height: 1.75m (69") including thread stand. |
| Weight | 1900 Kg (4,189 lbs) |
| Main Motor and Movement Motors | Full Servo Motor |
| Back Hoops or Frames | Yes, included (Double set, 4 sizes) |
| Circular Hoops | Yes, included (Double set, 5 sizes) |
| Frame Adapters (spiders) | Yes, different sizes |
| Frame Bases | Yes, different sizes |
| Magnetic Frames | Yes, for sizes that require them |
| Pantograph or Frame | Yes |
| Connection Port | USB (Optional wireless connection from factory) |
| Voltage | 220V 50 - 60 Hz. |
| Power Consumption | 1600 W. |
| Operating Temperature | 10°C - 25°C |
| Operating Humidity | 5% - 95% non-condensing |
| Manuals | Installation, Operation, and Maintenance (Digital file or printed). |
| Thread Winder or Bobbin Winder | Included, electric with automatic fill sensor. |
| Warranty | 1 year |
Features
ADVANCED FULL-COLOR LCD TOUCH SCREEN PANEL
Instant Punch: Embroider names, letters, or words—just type them on the panel and start embroidering instantly. Quick and easy!
Design Memory: Stores 32,000,000 stitches or 3,200 designs in memory, and is upgradable. Practically unlimited.
Cyclic Embroidery for Repetitions: With this function, the machine embroiders non-stop, making multiple repetitions in X and Y while using all the space in an orderly way. Ideal for emblems or patches on jackets or fabric panels.
Satin Width/Thin Compensation on Panel: Widens or narrows columns of the design without distortion, all from the panel. Huge time saver.
On-Panel Design Editing: Edit, combine, and separate designs directly on the embroidery machine panel without needing digitizing software.
Precise Design Tracing: Before embroidering, it performs a movement test to define the embroidery area, following a virtual outline of the design. This ensures unmatched accuracy and safety.
Automatic Embroidery Extraction: Save time—the machine automatically extracts the finished embroidery for quick removal and reload, enabling faster workflow.
High-Speed Forward and Backward: This critical process is performed stitch by stitch at high speed, resuming embroidery quickly and precisely.
Automatic Design Recovery: If there’s a power cut or electrical failure, the machine recovers the design and continues exactly where it left off.
Password Protection Against Intruders: This function prevents your designs from being stolen by operators or others.
Electronic System “Scanner” Analysis: With a simple process, the machine’s sensors detect the correct functioning of its components.
“Perfect Design” Definition: Patented high-quality system that defines and embroiders designs almost perfectly. Excellent results!
Thread cutting is programmable from the panel and includes cut height calibration. The programmable thread picker activates automatically each time the machine makes a cut.
Includes electronic systems that detect upper and lower thread breakage, immediately stopping the machine to prevent embroidery without thread. Other sensors such as area and position limiters are also included, all computer-controlled.
Our “UNIFORM” embroidery machines come equipped with Japanese “Rotary Hooks” from Koban or Hirose, both renowned brands for proven quality. These components suffer less wear, lasting longer—protecting your investment.
Our embroidery machines come factory-equipped with a “Pantograph” for large fabric sheets or oversized designs. It allows repeated embroidery of emblems (patches), saving both time and materials.
A complete kit with the essential tools for preventive maintenance, including a set of basic spare parts and consumables. We also provide a thread winder so you can prepare your own bobbins if preferred.
Your FASHION machine includes hoops and circular/back frames such as spiders and holders. Double sets let you prepare the next load while the machine is embroidering. (Sizes and quantities may vary depending on factory or distributor policies in your country; photo is referential).
OPTIONALS
SEQUIN DEVICE (Optional): Our industrial embroidery machines, aligned with market trends, come factory-equipped with a “SINGLE” sequin attachment (supports one roll per head). You can also order the “DOUBLE” version (supports 2 rolls of different characteristics per head). This allows you to embroider and attach sequins simultaneously in the same design.
VOLTAGE REGULATOR (Optional): FlexColor offers voltage regulators of 2000VA, 3000VA, 5000VA, 8000VA, and 15000VA depending on your machine. They come equipped with a fast electronic locking system (referential photo) and are specifically designed for industrial machinery. They handle special tolerances and support variations that other technologies cannot.
WHY FLEX COLOR?
WARRANTY AND PROFESSIONAL SUPPORT FlexColor: FlexColor is a leading manufacturer with a worldwide presence and, of course, in Mexico. We provide the best support for our clients thanks to our specialized engineers. We offer real warranty coverage nationwide with our own factory-direct offices, a spare parts inventory, and long-standing company stability. National Support “Call Center”: (626) 855-4525 or email [email protected]
STOCK, TRAINING, AND FREE PROFESSIONAL DELIVERY ACROSS THE COUNTRY: FlexColor has the best stock in the country and a wide variety of models to meet every need, with the strongest infrastructure to serve you better. We deliver or ship the machine to your city at no extra cost, and our engineer will personally assist you on-site.
MANUALS AND INSTRUCTIONAL VIDEOS: Depending on your FlexColor machine model, we provide the most comprehensive self-support system, including installation, operation, software, and preventive/corrective maintenance manuals, as well as parts and components guides. We also offer professional, didactic, and interactive YOUTUBE videos to help you troubleshoot on your own.
