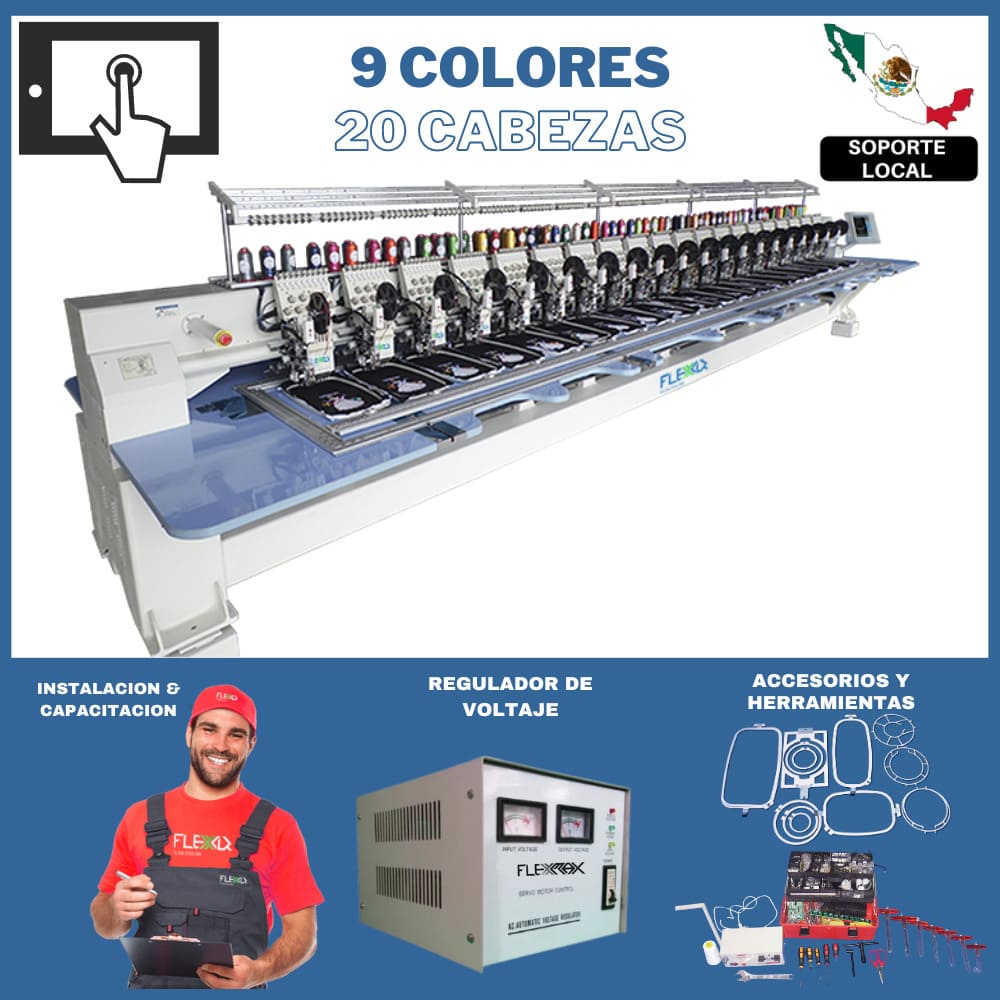

Works 24/7! If your business or factory requires a high-production machine, 20 heads are the perfect solution—ideal for embroidery service companies (contract work) with large-scale productions and tight deadlines. Embroider fabric cuts, garments, and patches (badges or emblems) with high output in less time.
Manufactured under CNC standards and processes, ensuring minimal wear over the years.
Flat embroidery machine for unassembled garments (fabric or leather cuts), large canvases, as well as assembled garments and caps (properly placed on the hoop or frame). Achieve production in half the time with an industrial servo motor, bridge-type structure, and best of all:
It’s a FlexColor! — you already know the name.
Includes:
- âś… Shipping, Delivery, Installation, and Training
- âś… Complete Hoop Set with all required sizes
- âś… Pantograph or frame for large fabric embroidery
- âś… Bobbin winder to create your own bobbin thread
- âś… Basic Tool Kit and Spare Parts
What Can You Embroider?
- FABRIC CUTS
- LEATHER CUTS
- SHIRTS
- JACKETS
- PANTS
- CLOTHING IN GENERAL
- PATCHES OR BADGES
- TOWELS
- ASSEMBLED CAPS (SPECIFIC AREAS)
- UNASSEMBLED CAPS (FLAT)
- NAPKINS
- SPECIAL GARMENTS
- 3D / HIGH RELIEF
- SINGLE SEQUIN (Opt.)
- DOUBLE SEQUIN (Opt.)
- OVERLAPPED SEQUIN (Opt.)
- INTERLOCKED SEQUIN (Opt.)
- SINGLE-LAYER APPLIQUÉ
- MULTI-LAYER APPLIQUÉ
- CROSS-STITCH
- RUSTIC FINISH
- FILL STITCH
- SMOOTH / FINE STITCH
- DENIM / JEANS
- COTTON
- POLYESTER
- PIQUÉ
- GABARDINE
- SILK
- SYNTHETIC FIBERS
- NATURAL FIBERS
- OTHERS
IMPORTANT: Embroidery machines are designed for different applications. Not all machines can handle the same work or achieve the same results. It depends on the embroidery technique, design, model chosen, and installed configuration. Please consult your FlexColor advisor.
Technical Specifications
| INDUSTRIAL FLAT EMBROIDERY MACHINE - FASHION920 | |
|---|---|
| Embroidery Area per Head | 68 x 30 cm (achieved with pantograph or full-area hoop) |
| Speed | Up to 1,200 RPM |
| Control Panel | Dahao A58 LCD Color Touch Screen |
| Supported Formats | EMB, DST, DSB, DSZ, and other common formats |
| Dimensions | Width: 7.40 m (291"). Depth: 1.60 m (63") with table installed. Height: 1.75 m (69") including thread stand. |
| Weight | 2600 Kg (5,732 lbs) |
| Main Motor & Drive Motors | Full Servo Motor |
| Back Hoops | Yes, included (Double set, 4 sizes) |
| Circular Hoops | Yes, included (Double set, 5 sizes) |
| Hoop Adapters (Spider Frames) | Yes, various sizes |
| Hoop Bases | Yes, various sizes |
| Magnetic Hoops | Yes, for applicable sizes |
| Pantograph or Frame | Yes |
| Connection Port | USB (Wireless connection optional from factory) |
| Voltage | 220V 50–60 Hz |
| Power Consumption | 1900 W |
| Operating Temperature | 10°C – 25°C |
| Operating Humidity | 5% – 95% without water condensation |
| Manuals | Installation, Operation, and Maintenance (Digital or Printed) |
| Thread Winder | Included, electric with automatic fill sensor |
| Warranty | 1 Year |
Features

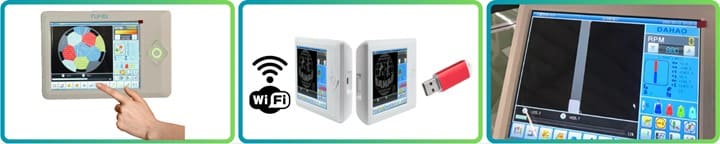

ADVANCED FULL-COLOR LCD TOUCH SCREEN PANEL
Instant Punch: Embroider names, letters, or words—just type them into the panel and start stitching immediately. Super fast!
Design Memory: Stores up to 100,000,000 stitches or 1,600 designs, with upgrade options. Practically unlimited.
Cyclic Embroidery for Repetitions: This function allows the machine to embroider continuously, making multiple repetitions in X and Y across the area in an orderly way. Perfect for emblems or patches on jackets or fabrics.
On-Panel Satin Stitch Width Compensation: Widens or narrows design columns without distortion, directly from the panel—huge time saver.
On-Panel Design Editing: Edit, combine, or split designs directly on the embroidery machine without needing digitizing software.
Precise Design Tracing: Before embroidering, the machine runs a motion test to trace the embroidery area virtually, avoiding collisions. Accuracy and safety guaranteed.
Automatic Embroidery Extraction: Saves time by automatically releasing the finished piece for quick removal and setup of the next job.
High-Speed Forward/Backward: Resumes embroidery with degree-by-degree precision at high speed, reducing downtime.
Automatic Design Recovery: If there’s a power outage or interruption, the machine resumes exactly where it left off.
Password Lock Against Intruders: Protects your designs from theft by operators or others.
Electronic System “Scanner” Analysis: With its built-in sensors, the machine can easily verify the proper functioning of its components.
Perfect Design Definition: Patented high-quality system delivers near-perfect embroidery results. Excellent!
The thread trimmer is programmable from the panel and includes height calibration. The programmable thread picker activates automatically after each cut.
Includes electronic upper and lower thread break sensors that alert and stop the machine instantly to avoid sewing without thread. Also includes other sensors like area and position limiters, all computer-controlled.
Our “UNIFORM” series machines come equipped with Japanese Koban or Hirose rotary hooks, known for durability and reduced wear. A true investment in longevity.
Includes a pantograph for full-area or large fabric embroidery. Perfect for repeating emblems (patches) efficiently, saving time and material.
A complete kit with essential maintenance tools, common spare parts, and consumables. Includes a bobbin winder so you can prepare your own bobbins.
Each FASHION machine includes double sets of circular and back hoops, spider frames, and holders. This lets you prep the next load while the machine is embroidering. (Sizes and quantities may vary by distributor or region; image for reference only).
OPTIONS

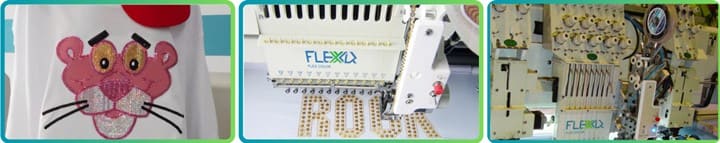

SEQUIN ATTACHMENT (Optional): Our industrial embroidery machines, in line with current trends, come factory-ready with a “SINGLE” sequin system (supports one roll per head). You can also order the “DOUBLE” option (supports two different rolls simultaneously per head). You can embroider and apply sequins in the same design at once.

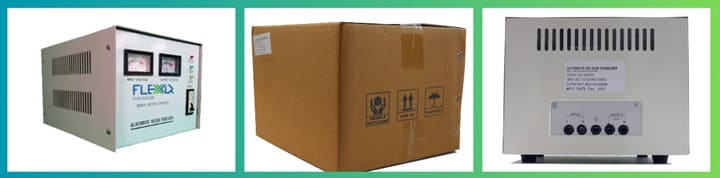

VOLTAGE REGULATOR (Optional): FlexColor offers voltage regulators of 2000VA, 3000VA, 5000VA, 8000VA, and 15000VA depending on your machine. They come equipped with a fast electronic lock system (reference image) and are specially designed for industrial machinery, with special tolerances and the ability to handle variations that other technologies cannot.
WHY FLEXCOLOR?
FLEXCOLOR WARRANTY & PROFESSIONAL SUPPORT: FlexColor is a global leading manufacturer headquartered in the USA, with offices in Mexico and other countries. We provide the best support to our clients with specialized engineers, real warranty coverage through our own offices, spare parts inventory, and long-standing company reliability. National Support Call Center: (626) 855-4525 or email [email protected]
IN-STOCK, TRAINING & FREE PROFESSIONAL DELIVERY NATIONWIDE: FlexColor offers the best inventory in the country and a wide variety of models to meet every need, supported by strong infrastructure. We deliver or ship your machine at no extra cost directly to your city, and our engineer personally provides training and setup.
MANUALS & TRAINING VIDEOS: Depending on your FlexColor model, we provide a complete self-support system including installation, operation, software, and preventive/corrective maintenance manuals, as well as spare parts documentation. Professionally produced instructional videos are also available on YouTube to guide and assist you step by step.
