Perfect for uniform shops, promotional businesses, or factories that need to embroider absolutely everything. Built with precision CNC processes, ensuring minimal wear over the years.
Embroiders all types of garments—caps, fabrics, sneakers, handbags, backpacks, towels, and more—on tubular or flat frames. Easy to operate and move, this high-speed machine runs with 12 colors at once. Best of all:
It’s a FlexColor! A name you already trust.
Includes:
- âś… Shipping, Delivery, Installation & Training
- âś… Complete Hoop Set with all required sizes
- âś… Cap Hoop Set
- âś… Tool Kit & Basic Spare Parts
- âś… Electronic Bobbin Winder to create your own bobbins
What Can You Embroider?
- CAPS
- POLOS
- SHIRTS
- JACKETS
- PANTS
- GENERAL APPAREL
- PATCHES & BADGES
- TOWELS
- FABRIC CUTS
- LEATHER CUTS
- NAPKINS
- SPECIALTY GARMENTS
- 3D EMBROIDERY
- SINGLE SEQUIN (Opt.)
- DOUBLE SEQUIN (Opt.)
- OVERLAPPED SEQUIN (Opt.)
- INTERLACED SEQUIN (Opt.)
- SINGLE-LAYER APPLIQUE
- MULTI-LAYER APPLIQUE
- CROSS-STITCH
- RUSTIC
- DENSE FILL
- SMOOTH & FINE
- DENIM
- COTTON
- POLYESTER
- PIQUET
- GABARDINE
- SILK
- SYNTHETIC FIBERS
- NATURAL FIBERS
- OTHERS
IMPORTANT: Embroidery machines are designed for different applications. Not all machines can perform the same tasks or achieve the same results. Performance depends on embroidery technique, design, model, and installed configurations. Please consult your FlexColor advisor.
Technical Specifications

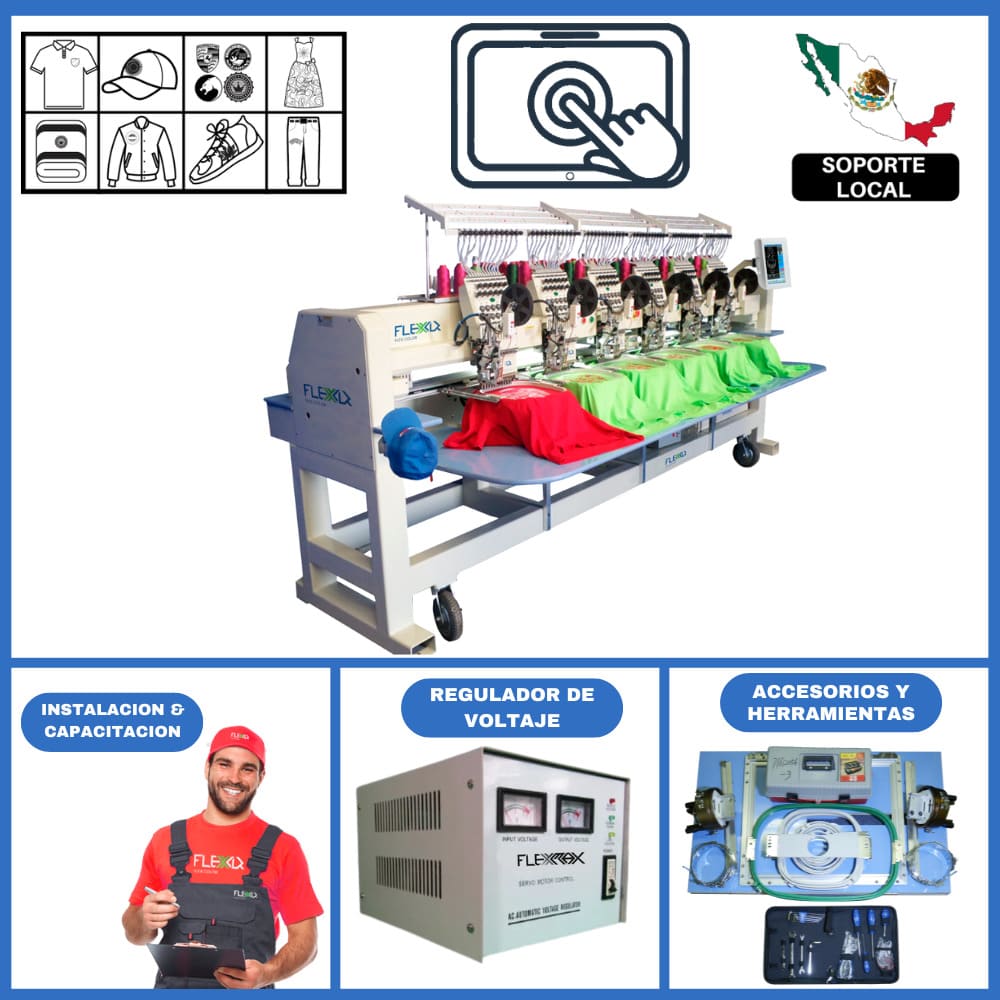

| INDUSTRIAL TUBULAR EMBROIDERY MACHINE - UNIFORM1206 | |
|---|---|
| Embroidery Area per Head | 45 x 40 cm (achieved with pantograph or full-area hoop) |
| Speed | Up to 1,200 RPM |
| Control Panel | Dahao A58 Color LCD Touch Screen |
| Supported Formats | EMB, DST, DSB, DSZ, and other common formats |
| Dimensions | 3.50 m x 1.60 m x 1.80 m (includes thread stand and table) |
| Weight | 790 kg without crate |
| Main & Movement Motors | Full Servo Motor |
| Back Hoops | Yes, most common size 30x30 cm, 2 per head |
| Round Hoops | Yes, most common sizes, 2 per head for each size |
| Flat Base | Yes, with table holder |
| Cap Frame Base | 2 per head (allows 270° embroidery) |
| Cap Hoops | 2 per head, adjustable |
| Pantograph or Frame | Included (Uniform model may include full-area back hoop) |
| Connection Port | USB (Wireless connection optional from factory) |
| Voltage | 220V 50–60 Hz (110V available) |
| Power Consumption | 1400 W |
| Operating Temperature | 10°C – 25°C |
| Operating Humidity | 5% – 95% non-condensing |
| Manuals | Installation, Operation & Maintenance (digital or printed) |
| Thread Winder / Bobbin Winder | Included, electric with auto-fill sensor |
| Warranty | 1 year |
Features

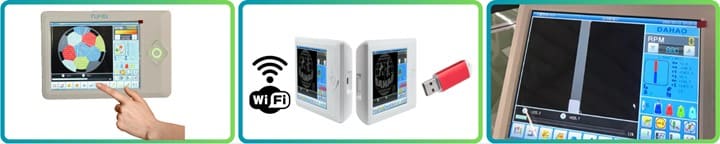

ADVANCED FULL-COLOR LCD TOUCH SCREEN PANEL
Instant Punch: Embroider names, letters, or words—just type them on the panel and start stitching immediately. Fast and efficient!
Design Memory: Stores up to 32,000,000 stitches or 3,200 designs, fully upgradeable. Practically unlimited.
Cyclic Embroidery for Repetitions: Embroiders continuously without stopping, making multiple repetitions in X and Y across the entire area. Perfect for emblems, patches, jackets, or large canvas designs.
Satin Column Compensation: Expands or reduces column widths directly from the panel without deforming the design—huge time saver.
On-Panel Design Editing: Edit, combine, or split designs directly on the embroidery machine without needing digitizing software.
Precise Design Tracing: Before stitching, the machine performs a virtual outline of the design area to ensure safe, collision-free embroidery with unmatched accuracy.
Automatic Embroidery Extraction: Saves time by automatically releasing the finished embroidery for quick removal and reloading of materials.
High-Speed Forward & Reverse: Performs step-by-step movement at high speed to quickly resume embroidery with precision.
Automatic Design Recovery: In case of a power cut or interruption, the machine resumes exactly where it left off.
Password Lock Protection: Prevents unauthorized operators from accessing or stealing your designs.
Electronic System Scanner: Multiple sensors run diagnostics to verify proper component performance.
“Perfect Design” Definition: Patented system delivers near-perfect embroidery results—outstanding quality every time.
Programmable thread trimming from the panel with adjustable cutting height. Automatic thread picker activates each time the machine trims.
Equipped with upper and lower thread break sensors that stop the machine instantly. Additional sensors include position and area limiters, all computer-controlled.
UNIFORM machines come equipped with rotary hooks from Koban or Hirose—trusted Japanese brands known for durability. Less wear means longer life and better protection of your investment.
Factory-equipped pantograph allows embroidery on large fabrics or oversized designs. Ideal for repeating patches and emblems, saving both time and material.
Includes a complete kit with essential tools for preventive maintenance, plus a set of basic spare parts and consumables. Also comes with a bobbin winder to prepare your own bobbins if preferred.
Each UNIFORM comes with circular, back, and cap hoops. Double sets allow you to prepare the next job while the machine continues running. (Sizes and quantities may vary depending on factory or distributor policies in your country. Reference image shown.)
OPTIONALS
"CLIP" HOOP FOR SPECIAL PRODUCTS (OPTIONAL): Includes a special “Clip Hoop” designed for embroidery on unique items such as backpacks, sneakers, belts, handbags, gloves, shirt collars, and more.
VOLTAGE REGULATOR (OPTIONAL): FlexColor offers voltage regulators in 2000VA, 3000VA, 5000VA, 8000VA, and 15000VA models depending on your machine. Equipped with a high-speed electronic lock system (reference image), these are specially designed for industrial machinery, handling tolerances and power fluctuations that other technologies cannot withstand.
WHY FLEXCOLOR?
FLEXCOLOR WARRANTY & PROFESSIONAL SUPPORT: FlexColor is a global leader with strong presence in the United States and worldwide. We provide the best customer support with specialized engineers, a real factory-backed warranty with nationwide coverage, in-house offices, spare parts inventory, and long-term reliability as a company. U.S. Support Call Center: (626) 855-4525 or email [email protected]
STOCK, TRAINING & FREE NATIONWIDE DELIVERY: FlexColor maintains the largest inventory in the country and offers a wide variety of models to meet every need, supported by the best infrastructure. We deliver or ship your machine free of charge anywhere in the U.S., and our engineers provide professional installation and training directly at your location.
MANUALS & INSTRUCTIONAL VIDEOS: Depending on your FlexColor model, we provide a complete self-support system including installation, operation, software, and maintenance manuals, as well as detailed parts catalogs. Professionally produced instructional videos are also available on YouTube to help you maximize the use of your machine.
