Works 24/7! If your business or factory needs a high-production machine, 15 heads cover this need best. Ideal for embroidery service companies (contract work) with high production demands and tight delivery deadlines. Embroider your fabric cuts, garments, and patches (emblems or badges) with high productivity in short times.
Manufactured with “CNC” standards and processes, ensuring minimal wear over the years.

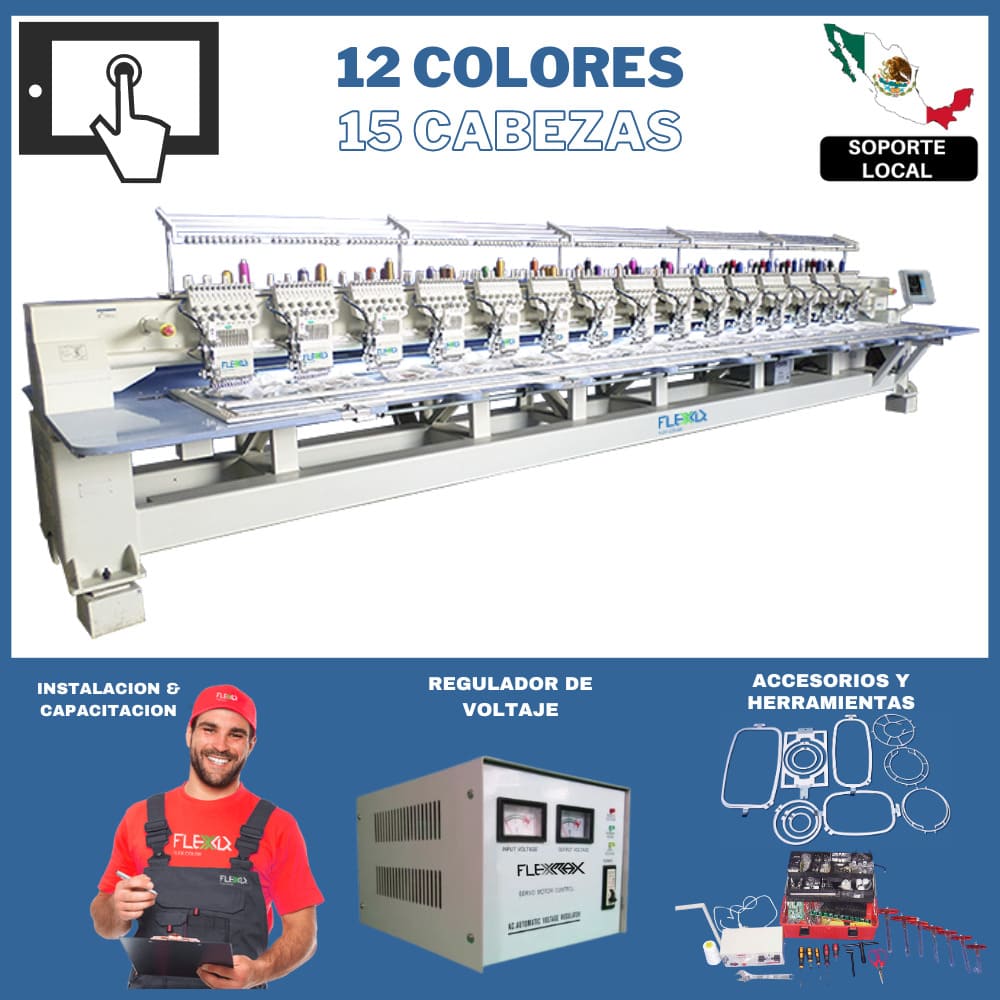

Flat embroidery machine for embroidering unassembled garments (fabric or leather pieces), fabrics (extended cloths), as well as assembled garments and caps (properly placed in the frame or hoop). Get your production done in half the time, with an industrial servo motor, bridge-type structure, and best of all:
It’s a FlexColor!, you already know it.
Includes:
- âś… Shipping, Delivery, Installation, and Training
- âś… Hoop Set with all necessary sizes
- âś… Pantograph or frame for fabric embroidery
- âś… Thread winder to create your own bobbin thread
- âś… Tool Kit and Basic Spare Parts
What can you embroider?
- GENERAL FABRIC CUTS
- GENERAL LEATHER CUTS
- SHIRTS
- JACKETS
- PANTS
- GENERAL CLOTHING
- PATCHES OR EMBLEMS
- TOWELS
- ASSEMBLED CAPS (SPECIFIC AREAS)
- UNASSEMBLED CAPS (FLAT)
- NAPKINS
- SPECIAL GARMENTS
- 3D PUFF
- SINGLE SEQUIN (Opt.)
- DOUBLE SEQUIN (Opt.)
- OVERLAPPED SEQUIN (Opt.)
- ALTERNATED SEQUIN (Opt.)
- SINGLE-LAYER APPLIQUÉ
- MULTI-LAYER APPLIQUÉ
- CROSS STITCH
- RUSTIC
- FILL OR SATIN STITCH
- SMOOTH OR FINE
- DENIM (JEAN)
- COTTON
- POLYESTER
- PIQUET
- GABARDINE
- SILK
- SYNTHETIC FIBERS
- NATURAL FIBERS
- OTHERS
IMPORTANT: There are embroidery machines for different applications, not all can perform the same work or do it with the same quality. It depends on the embroidery technique, design, selected model, and the installed options. Please consult your FlexColor advisor.
Technical Specifications
| INDUSTRIAL FLAT EMBROIDERY MACHINE - INDUSTRIAL FASHION1215 | |
|---|---|
| Embroidery Area per Head | 68 x 40 cm (achieved with pantograph or full-area hoop) |
| Speed | Up to 1,200 rpm |
| Control Panel | Dahao A58 LCD color "Touch Screen" |
| Supported Formats | EMB, DST, DSB, DSZ, among other common formats. |
| Dimensions | Width: 7.40m (291"). Depth: 1.60m (63") with table installed. Height: 1.75m (69") including thread stand. |
| Weight | 2400 Kg (5,241 lbs) |
| Main Motor and Drive Motors | Full Servo Motor |
| Back Hoops or Frames | Yes, included (Double set, 4 sizes) |
| Circular Hoops | Yes, included (Double set, 5 sizes) |
| Frame Adapters (Spiders) | Yes, different sizes |
| Frame Bases | Yes, different sizes |
| Magnetic Frames | Yes, for applicable sizes |
| Pantograph or Frame | Yes |
| Connection Port | USB (Optional wireless connection from factory) |
| Voltage | 220V 50 - 60 Hz |
| Power Consumption | 1750 W |
| Operating Temperature | 10°C - 25°C |
| Operating Humidity | 5% - 95% non-condensing |
| Manuals | Installation, Operation and Maintenance (Digital file or printed). |
| Thread Winder or Bobbin Winder | Included, electric with automatic fill sensor. |
| Warranty | 1 year |
Features
ADVANCED FULL-COLOR LCD TOUCH SCREEN PANEL
Instant Punch: Embroider names, letters, or words—just type them into the panel and start embroidering immediately. Fast and easy!
Design Memory: Stores 100,000,000 stitches or 1,600 designs in memory, upgradable. Practically unlimited.
Cyclic Embroidery for Repetitions: This function allows continuous embroidery, making multiple repetitions in X and Y while utilizing all available space neatly. Ideal for emblems, patches, or jacket panels.
Satin Width/Thin Column Compensation on Panel: Widens or reduces design columns without distortion, all from the panel—great time saver.
On-Panel Design Editing: Edit, combine, and split designs directly on the embroidery panel without needing digitizing software.
Accurate Design Outlining: Before starting, the machine tests the movement to define the embroidery area, tracing a virtual outline of the design. This process is precise and safe.
Automatic Embroidery Extraction: Automatically extracts finished embroidery to allow quick removal and reloading, saving time.
High-Speed Forward and Backward Stitching: Performed step by step at high speed, quickly resuming embroidery with precision.
Automatic Design Recovery: In case of a power outage or failure, the machine recovers the design and resumes exactly where it left off.
Password Lock Against Intruders: Prevents theft of your designs by operators or unauthorized users.
Electronic “Scanner” System Analysis: Through a simple process, the machine uses its multiple sensors to detect correct component operation.
“Perfect Design” Definition: Patented high-quality system that embroiders designs almost perfectly—excellent results!
Thread cutting is programmable from the panel, including cut height calibration. The programmable thread trimmer activates automatically every time the machine makes a cut.
Includes electronic detection systems for upper and lower thread breaks that stop the machine immediately to prevent embroidery without thread. Additional sensors monitor area limits, position, and more—all computer-controlled.
Our “UNIFORM” embroidery machines come equipped with Koban or Hirose rotary hooks—renowned Japanese brands known for durability and quality. Less wear means longer lifespan—protecting your investment.
All machines come factory-equipped with a pantograph for embroidering full panels or larger designs. Perfect for repetitive emblem (patch) embroidery, saving both time and materials.
A complete kit including basic maintenance tools, spare parts, and consumables. Comes with a thread winder so you can prepare your own bobbins if desired.
Your FASHION machine includes circular and back hoops, along with spiders and holders. Double sets allow preparation of the next job while the machine continues embroidering. (Sizes and quantities may vary depending on factory or distributor policies. Photo is referential.)
OPTIONALS
SEQUIN DEVICE (Optional): Our industrial embroidery machines, following market trends, include a factory-installed “SINGLE” sequin attachment (supports one roll per head). You may also order the “DOUBLE” (supports 2 rolls of different types at once per head). Embroider and attach sequins simultaneously.
VOLTAGE REGULATOR (OPTIONAL): FlexColor offers voltage regulators of 2000VA, 3000VA, 5000VA, 8000VA, and 15000VA depending on your machine. They are equipped with a fast electronic locking system (referential photo) and are designed specifically for industrial machinery, handling special tolerances and voltage variations that other technologies cannot withstand.
WHY FLEX COLOR?
WARRANTY AND PROFESSIONAL SUPPORT FlexColor: FlexColor is a leading factory with a global presence, and of course in the USA. We provide the best support for our clients thanks to our specialized engineers. We offer a real warranty with nationwide coverage through our own factory offices, a spare parts inventory, and long-term company stability. National Support “Call Center”: (626) 855-4525 or email [email protected]
STOCK, TRAINING, AND FREE PROFESSIONAL DELIVERY NATIONWIDE: FlexColor has the best stock in the country and a variety of models for all needs, with the best infrastructure to serve you. We deliver or ship the machine to your city at no extra cost, and our engineer will personally assist you on-site.
MANUALS AND INSTRUCTIONAL VIDEOS: Depending on your FlexColor machine model, we provide the most complete self-help support system, including manuals for installation, operation, software, preventive and corrective maintenance, as well as parts and components manuals. We also offer professional, educational, and interactive tutorial videos on YOUTUBE to help you support yourself.
