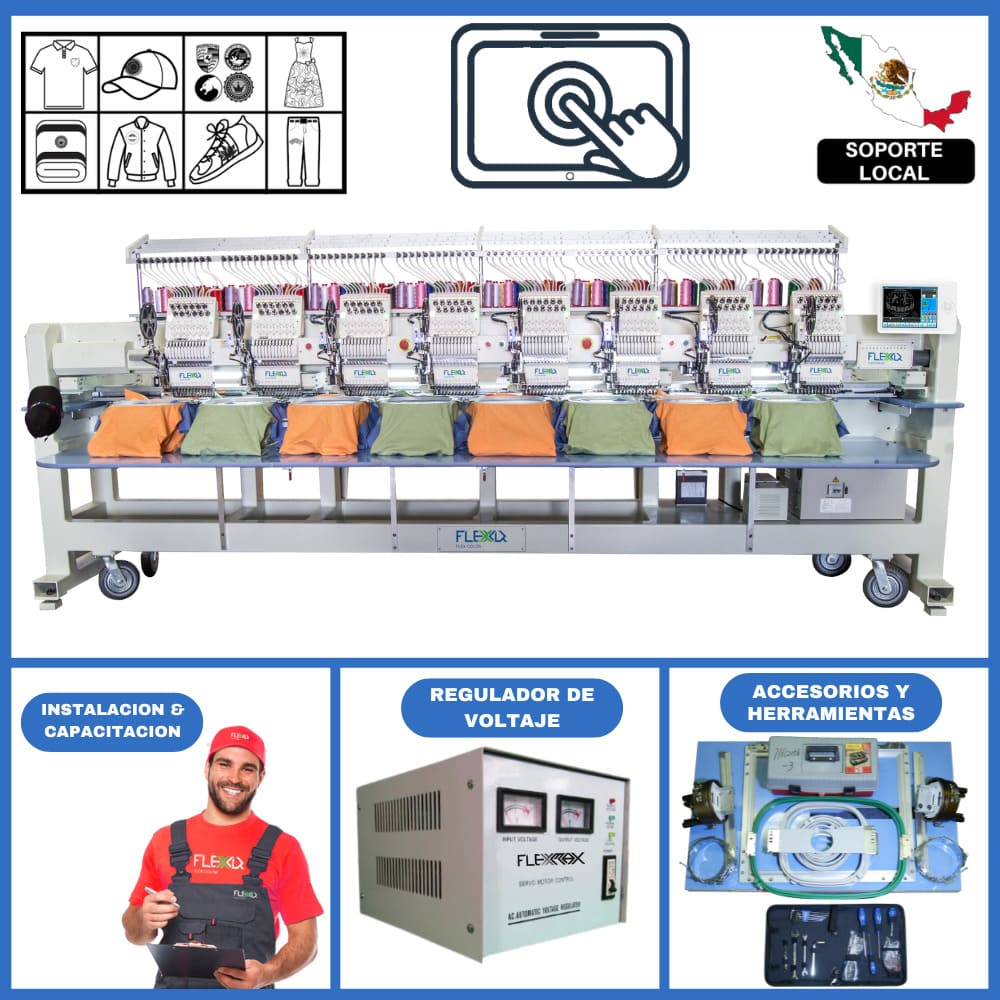

Perfect for uniform shops, promotional businesses, or factories that need to embroider absolutely everything. Built with precision CNC processes, ensuring minimal wear over the years.
Embroiders all types of garments—caps, fabrics, sneakers, handbags, backpacks, towels, and more—on tubular or flat frames. Easy to operate and move, this high-speed machine runs with 12 colors at once. Best of all:
It’s a FlexColor! A name you already trust.
Includes:
- âś… Shipping, Delivery, Installation & Training
- âś… Complete Hoop Set with all required sizes
- âś… Cap Hoop Set
- âś… Tool Kit & Basic Spare Parts
- âś… Electronic Bobbin Winder to create your own bobbins
What Can You Embroider?
- CAPS
- POLOS
- SHIRTS
- JACKETS
- PANTS
- GENERAL APPAREL
- PATCHES & BADGES
- TOWELS
- FABRIC CUTS
- LEATHER CUTS
- NAPKINS
- SPECIALTY GARMENTS
- 3D EMBROIDERY
- SINGLE SEQUIN (Opt.)
- DOUBLE SEQUIN (Opt.)
- OVERLAPPED SEQUIN (Opt.)
- INTERLACED SEQUIN (Opt.)
- SINGLE-LAYER APPLIQUE
- MULTI-LAYER APPLIQUE
- CROSS-STITCH
- RUSTIC
- DENSE FILL
- SMOOTH & FINE
- DENIM
- COTTON
- POLYESTER
- PIQUET
- GABARDINE
- SILK
- SYNTHETIC FIBERS
- NATURAL FIBERS
- OTHERS
IMPORTANT: Embroidery machines are designed for specific applications— not all machines can perform the same tasks or achieve the same finish. Results depend on embroidery technique, design, model selected, and available configurations. Please consult your FlexColor advisor.
Technical Specifications
| INDUSTRIAL TUBULAR EMBROIDERY MACHINE - UNIFORM1208 | |
|---|---|
| Embroidery Area per Head | 45 x 40 cm (achieved with pantograph or full-area hoop) |
| Speed | Up to 1,000 RPM |
| Control Panel | Dahao A58 Color LCD Touch Screen |
| Supported Formats | EMB, DST, DSB, DSZ, and other common formats |
| Dimensions | 4.50 m x 1.60 m x 1.80 m (includes thread stand and table) |
| Weight | 980 kg without crate |
| Main & Movement Motors | Full Servo Motor |
| Back Hoops | Yes, most common size 30x30 cm, 2 per head |
| Round Hoops | Yes, most common sizes, 2 per head for each size |
| Flat Base | Yes, with table holder |
| Cap Frame Base | 2 per head (allows 270° embroidery) |
| Cap Hoops | 2 per head, adjustable |
| Pantograph or Frame | Included (Uniform model may include full-area back hoop) |
| Connection Port | USB (Wireless connection optional from factory) |
| Voltage | 220V 50–60 Hz (110V available) |
| Power Consumption | 1500 W |
| Operating Temperature | 10°C – 25°C |
| Operating Humidity | 5% – 95% non-condensing |
| Manuals | Installation, Operation & Maintenance (digital or printed) |
| Thread Winder / Bobbin Winder | Included, electric with auto-fill sensor |
| Warranty | 1 year |
Features
ADVANCED FULL-COLOR LCD TOUCH SCREEN PANEL
Instant Punch: Embroider names, letters, or words—simply type them on the panel and start stitching immediately. Fast and efficient!
Design Memory: Stores up to 32,000,000 stitches or 3,200 designs, fully upgradeable. Practically unlimited.
Cyclic Embroidery for Repetitions: Allows continuous embroidery without stopping, making multiple repetitions in X and Y. Perfect for emblems, badges, or large canvas designs.
Satin Column Compensation: Adjusts design columns (wide/narrow) directly from the panel without distortion, saving time.
On-Panel Design Editing: Edit, combine, or split designs directly on the embroidery machine—no need for separate digitizing software.
Precise Design Tracing: Performs a movement test before embroidery to outline the stitching area, ensuring maximum accuracy and avoiding collisions.
Automatic Embroidery Extraction: Saves time by automatically releasing the finished embroidery, allowing quick removal and reloading of new materials.
High-Speed Forward & Reverse: Step-by-step movement at high speed to resume embroidery quickly and accurately.
Automatic Design Recovery: If power is interrupted, the machine resumes exactly where it left off.
Password Lock Protection: Prevents unauthorized users or operators from accessing or stealing your designs.
Electronic System Scanner: Multiple sensors automatically check system performance to ensure reliable operation.
“Perfect Design” Definition: Patented system delivers near-perfect embroidery quality—outstanding results every time.
Programmable thread trimming from the panel, including adjustable cutting height. Automatic thread picker activates each time the machine trims.
Equipped with electronic sensors for upper and lower thread break detection—alerts and stops the machine instantly. Additional sensors include position and area limiters, all computer-controlled.
UNIFORM machines are equipped with Koban or Hirose rotary hooks—renowned Japanese brands with proven durability. Less wear means longer life, protecting your investment.
Factory-equipped pantograph allows embroidery on large canvases or oversized designs. Ideal for repeating emblems or patches, saving both time and material.
Includes a complete kit with essential tools for preventive maintenance, plus basic spare parts and consumables. Comes with a bobbin winder so you can prepare your own bobbins if desired.
Each UNIFORM comes with circular, back, and cap hoops. Double sets let you prep the next job while the machine is running. (Sizes and quantities may vary depending on regional distributor or factory policy. Image for reference only.)
OPTIONALS
"CLIP" HOOP FOR SPECIAL PRODUCTS (OPTIONAL): Includes a special “Clip Hoop” designed for embroidery on unique items such as backpacks, sneakers, belts, handbags, gloves, shirt collars, and more.
VOLTAGE REGULATOR (OPTIONAL): FlexColor provides voltage regulators in 2000VA, 3000VA, 5000VA, 8000VA, and 15000VA options depending on your machine. Equipped with high-speed electronic lock systems (reference image), these are specifically designed for industrial machinery, offering special tolerances and handling fluctuations that other technologies cannot withstand.
WHY FLEXCOLOR?
FLEXCOLOR WARRANTY & PROFESSIONAL SUPPORT: FlexColor is a global leader with strong presence in the United States and beyond. We provide unmatched customer support with highly trained engineers, a real factory-backed warranty with nationwide coverage, in-house offices, spare parts inventory, and long-term reliability as a company. U.S. Support Call Center: (626) 855-4525 or email [email protected]
STOCK, TRAINING & FREE DELIVERY NATIONWIDE: FlexColor offers the largest inventory in the country with a wide range of models to meet every business need. We provide free delivery to your location and on-site installation and training by our specialized engineers.
MANUALS & INSTRUCTIONAL VIDEOS: Depending on your FlexColor model, you’ll receive a complete self-support system including installation, operation, software, and maintenance manuals, as well as detailed parts catalogs. Professionally produced interactive video tutorials are also available on YouTube to help you get the most out of your machine.
