Ideal for promo shops, uniform programs, and factories that need to embroider everything. Built with CNC manufacturing standards for minimal wear over the years.
Tubular and flat embroidery for all kinds of garments—caps, flat panels, fabric pieces, sneakers, bags, backpacks, towels, and more. Easy to use and move, high-speed, with 15 colors online at once. Best of all:
It’s a FlexColor! You already know the name.
Includes:
- âś… Shipping, Delivery, Installation & Training
- âś… Ergonomic Steel Stand with Casters
- âś… Full Hoop Set in all essential sizes
- âś… Cap Hoop Set
- ✅ Integrated “PHOTO” function on the panel — upload a photo and stitch it
- âś… Basic Tools & Spare Parts Kit
- âś… Electronic Bobbin Winder to create your own bobbin thread
What can you embroider?
- CAPS
- POLOS
- SHIRTS
- JACKETS
- PANTS
- GENERAL CLOTHING
- PATCHES OR EMBLEMS
- TOWELS
- GENERAL FABRIC CUTS
- GENERAL LEATHER CUTS
- NAPKINS
- SPECIAL GARMENTS
- HIGH RELIEF
- SINGLE SEQUIN (Opt.)
- DOUBLE SEQUIN (Opt.)
- OVERLAID SEQUIN (Opt.)
- INTERLACED SEQUIN (Opt.)
- SINGLE-LAYER APPLICATION
- MULTI-LAYER APPLICATION
- CROSS-STITCH
- RUSTIC
- FILL OR DENSE
- SMOOTH OR FINE
- DENIM (Jean)
- COTTON
- POLYESTER
- PIQUET
- GABARDINE
- SILK
- SYNTHETIC FIBERS
- NATURAL FIBERS
- OTHERS
IMPORTANT: There are embroidery machines for different applications, not all of them can do the same job or with the same naturalness. It depends on the embroidery technique, design, selected model, and the configuration of the installed options. Consult your FlexColor advisor.
Technical Specifications
| INDUSTRIAL TUBULAR EMBROIDERY MACHINE - INDUSTRIAL UNIFORM1502 | |
|---|---|
| Embroidery Area per Head | 56 x 36 cm (achieved with the pantograph or full-area hoop) |
| Speed | Up to 1,200 rpm |
| Control Panel | Dahao A15 full-color LCD "Touch Screen" with Automatic Photo Embroidery Function |
| Supported Formats | EMB, DST, DSB, DSZ, among other common formats. |
| Dimensions | 1.42 m wide x 0.76 m deep x 1.60 m high. Includes thread stand and work table. |
| Weight | 190 kg (420 lbs) with packaging. 150 kg without packaging. |
| Main Motor and Motion Motors | Induction Motor and Electronic Driver |
| Back Hoops | Yes, the most commonly used 30x30, 2 per head |
| Circular Hoops | Yes, the most commonly used sizes, 2 per head of each size |
| Framing Base | Yes, with table holder |
| Cap Frame Base | 2 per head (allows embroidery at 270°). |
| Cap Hoops | 2 per head, adjustable. |
| Pantograph or Frame | Included (The UNIFORM may include a full-area back hoop) |
| Connection Port | USB (Optional wireless connection from factory) |
| Voltage | 220V 50 - 60 Hz (110V Available) |
| Power Consumption | 1100 W. |
| Operating Temperature | 10°C - 25°C |
| Operating Humidity | 5% - 95% non-condensing |
| Manuals | Installation, Operation, and Maintenance (Digital file or printed). |
| Thread Winder or Bobbin Winder | Included, electric with automatic fill sensor. |
| Warranty | 1 year |
Features

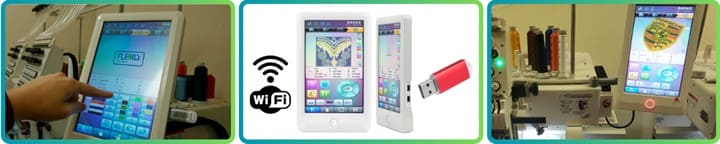

ADVANCED FULL-COLOR LCD TOUCH SCREEN PANEL
Instant Punch: Embroider names, letters, or words — just type them in on the panel and start embroidering.
Design Memory: Stores 16,000,000 stitches or 1,600 designs in memory and is upgradeable.
Cyclic Embroidery for Repetitions: Embroider continuously, making multiple repetitions in X and Y while using all spaces neatly. Ideal for emblems, badges, and jackets.
On-Panel Satin Width/Thin Compensation: Widens or narrows design columns without distortion, all directly from the panel, saving valuable time.
On-Panel Design Editing: Edit, combine, and separate designs directly on the embroidery machine panel.
Precise Design Profiling: Before starting, to avoid collisions, the machine performs a motion test to define the embroidery area by tracing a virtual outline of the design. The precision of this process is unmatched and safe.
Automatic Embroidery Extraction: Save time — the machine automatically extracts the finished embroidery to allow for quick removal and replacement of the material, speeding up workflow.
High-Speed Forward and Backward: This essential process is performed degree by degree at high speed, resuming embroidery quickly and accurately.
Automatic Design Recovery: If power is cut or fails during embroidery, the machine recovers the design and continues exactly where it left off.
Password Lock Against Intruders: Prevents theft of your designs by the operator or others.
System “Scanner” Electronic Analysis: Through a simple process, the machine uses multiple sensors to detect correct component operation.
“Perfect Design” Definition: Patented high-quality system that defines and embroiders designs almost perfectly. Excellent results!
Thread cutting is programmable from the panel, including height calibration. The thread picker is programmable and activates automatically each time the machine makes a cut.
Includes electronic systems to detect upper and lower thread breakage, alerting and stopping the machine immediately to prevent embroidery without thread. Other sensors include area and position limiters, all computer-controlled.
Our “UNIFORM” series machines come equipped with the “Rotary Hook,” better known as the “Hook,” from Koban or Hirose — both Japanese brands with proven quality. They suffer less wear and therefore last longer, protecting your investment.
Our embroidery machines come standard with a “Pantograph” for full-panel or larger embroidery. You can also use it to repeat emblems (patches), saving both time and material.
A complete kit that includes basic tools for preventive machine maintenance, as well as a set of common spare parts and consumables. We also provide a thread winder so you can prepare your own bobbins if preferred.
Your UNIFORM includes circular hoops, back hoops, and cap frames. A double set allows you to prepare the next load while the machine is still embroidering. (Sizes and quantities may vary depending on your country’s factory branch or distributor policies; photo is for reference only).
OPTIONAL

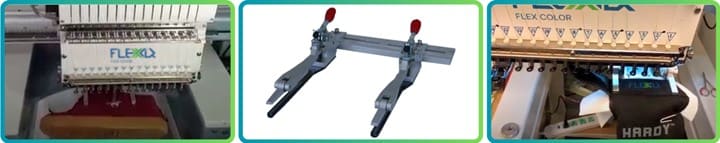

“CLIP” HOOP FOR EMBROIDERY ON SPECIAL PRODUCTS (OPTIONAL): We include a special “Clip Hoop” for embroidery on garments or special products such as backpacks, sneakers, belts, handbags, gloves, shirt collars, etc.

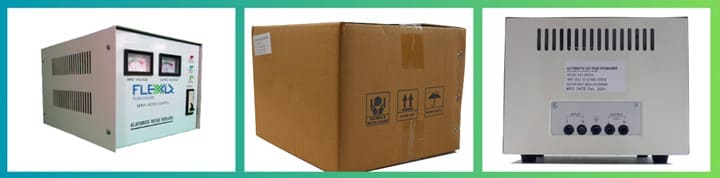

VOLTAGE REGULATOR (OPTIONAL): FlexColor sells voltage regulators of 2000VA, 3000VA, 5000VA, 8000VA, and 15000VA depending on your machine. They come equipped with a fast electronic locking system (reference photo) and are specially designed to work with industrial machinery, handling special tolerances and supporting variations that other technologies cannot manage.
WHY FLEX COLOR?
WARRANTY AND PROFESSIONAL SUPPORT FlexColor: FlexColor is a leading global manufacturer and, of course, in Mexico. We provide the best support for our clients with specialized engineers, real warranty with national coverage from our own factory offices, spare parts inventory, and long-standing business presence. National Support “Call Center”: (626) 855-4525 or email [email protected]
STOCK, TRAINING, AND FREE PROFESSIONAL DELIVERY ACROSS THE COUNTRY: FlexColor has the largest stock in the country and a variety of models for every need, along with the best infrastructure to serve you better. We deliver or ship the machine to your city at no extra cost, and our engineer will personally assist you.
MANUALS AND INSTRUCTIONAL VIDEOS: Depending on your FlexColor machine model, we provide the most complete self-help support system with installation, operation, software, preventive and corrective maintenance manuals, as well as parts manuals. Professionally made, interactive, and educational YouTube videos are also available to help you help yourself.
